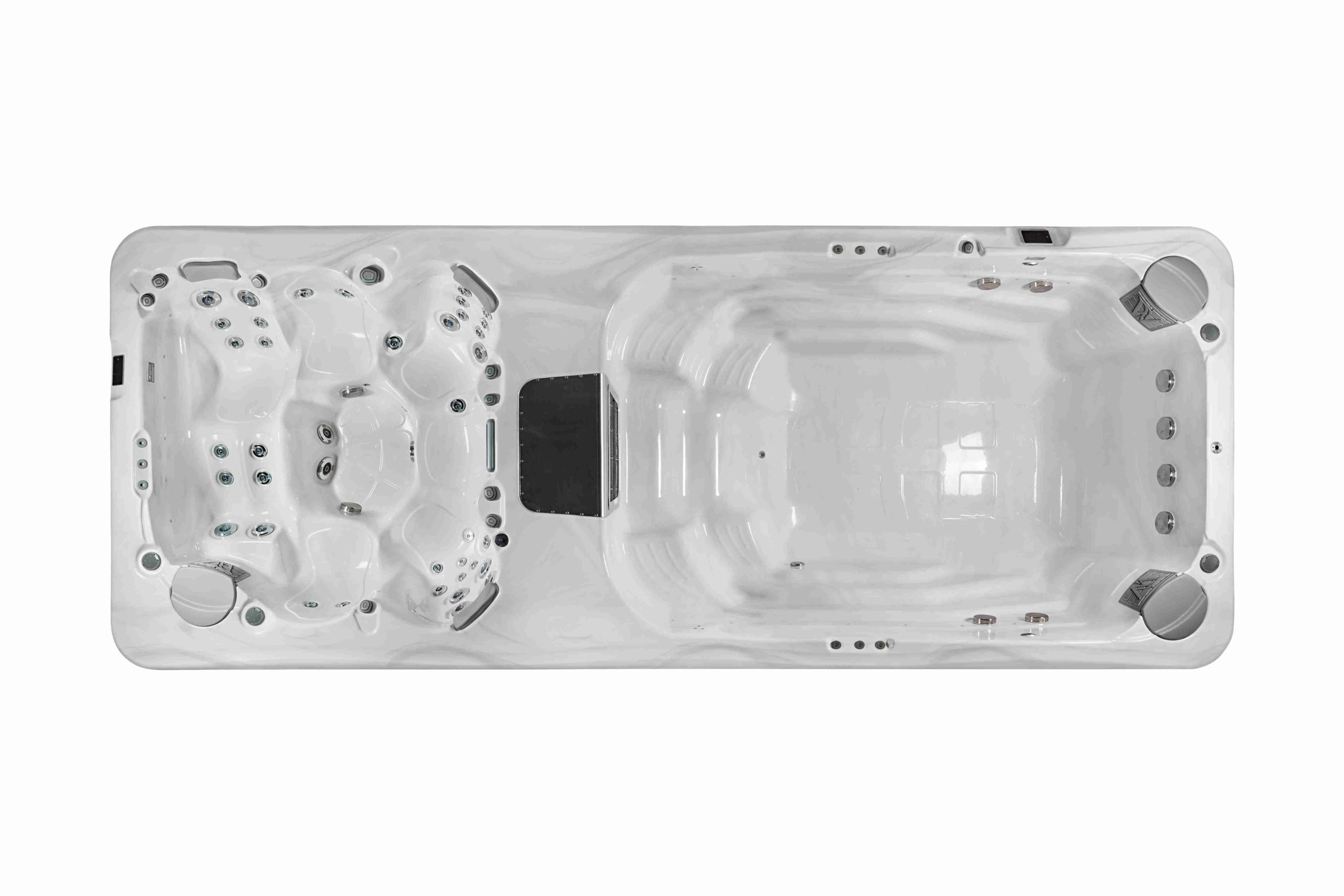

Rio Grande W-Flow – Click to Enlarge
Acrylic Color Options
Cabinet Color Options
| PRODUCT SPECS | ||||
| Dimensions | 19′ 8″ × 7′ 8″ × 4′ 9″ | |||
| Seats | 1 reclining place 5 sitting places swim area |
|||
| Net weight/ Water volume | 3 043 lbs / 1 821 gallons | |||
| Frame | Stainless steel | |||
| Side cover | HorizontSide™ UV-proof wood textured | |||
| Reinforcement | Fiberglass reinforced | |||
| Insulation | Polyfoam (1.4 in/0.4 in) | |||
| Drains | 2 pc D50 ball valve | |||
| POWER REQUIREMENT | ||||
| Hydromassage | 240V 60Hz 42A | |||
| Swim Spa | 240V 60hz 53 A | |||
| MASSAGE SYSTEM | ||||
| Control box | Gecko (IN.YE-3 + IN.YE-8) | |||
| Control panel | 2 x SmartTouch (K-1000) | |||
| Total number of jets | 41 pcs + W-Flow system | |||
| Laminar fountain jets | 3 X 3 pcs | |||
| Waterfall | 1 pc | |||
| Heater | 2 x 4 kW | |||
| Pumps (hydro massage) | 2 pcs 3HP 1 speed + Circ. pump | |||
| Pumps (swim spa) | 3 pcs 3HP 2 speed + Circ. pump | |||
| WATER CARE | ||||
| Filtration | 2 pcs + 1 pc Superfine paper filters | |||
| Water sanitization | 2 pcs UV-C + Ozone | |||
| COMFORT SOLUTIONS | ||||
| LED lights | 16 + 18 pcs LED + illuminated control valves |
|||
| Headrests | 3 pcs | |||
| Sound system | AquaSoul™ Pro 4.1 | |||
| PREMIUM SOLUTIONS | ||||
| SmartPhone app – wifi connection | yes | |||
| Thermo cover | yes (standard 5-3.5 in) | |||
| Liquid aromatherapy | yes | |||
| Swimming stick | yes | |||
| Heat exchanger preparation | yes | |||
